High heat-transfer efficiency
Plate patterns deliver strong thermal performance.

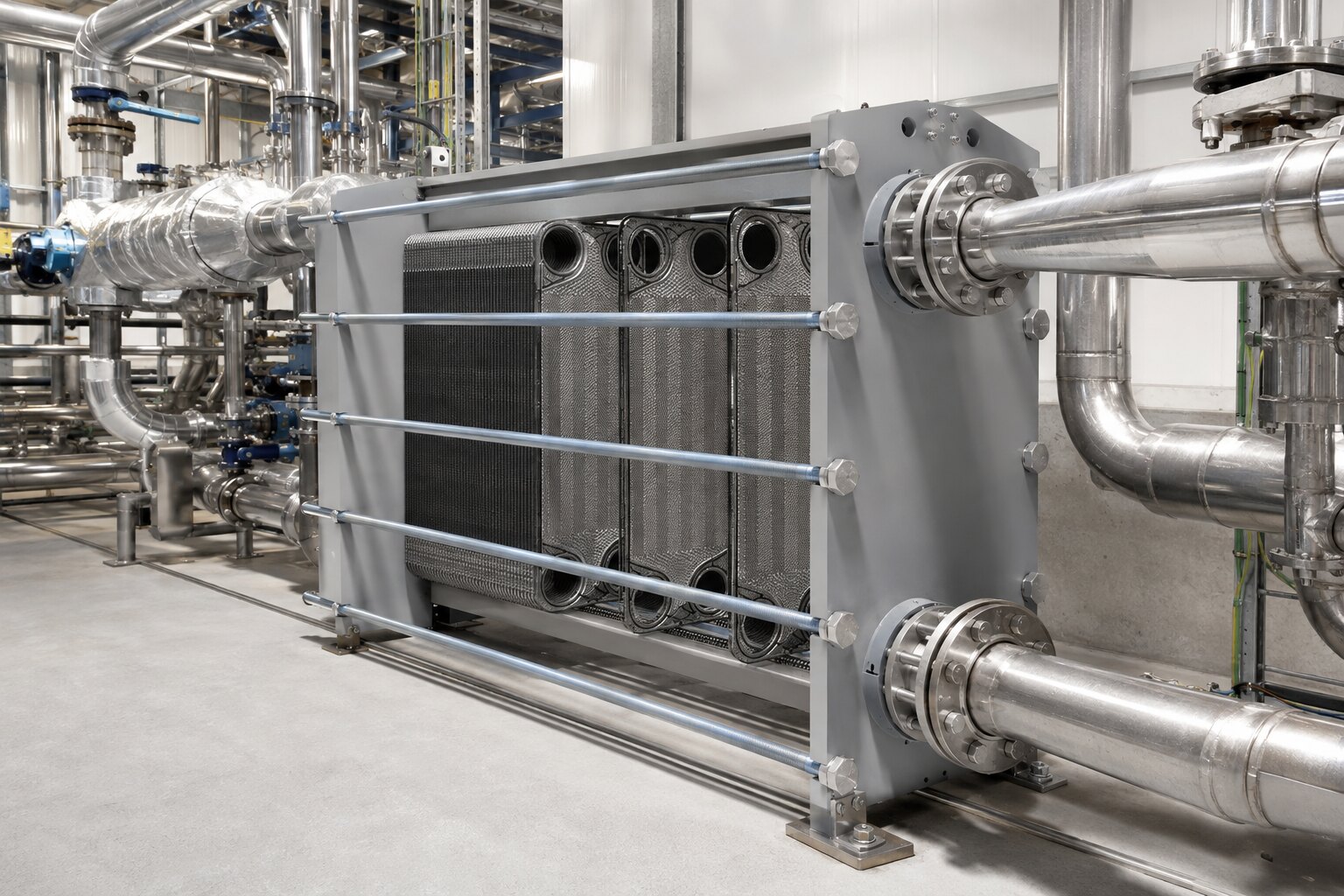

GASKETED PLATE HEAT EXCHANGER
FlowPack®
Flexible heat transfer.
Engineered for easy access.
FLOWPACK®
High performance.
Low life-cycle cost.
Vitherm Asia Plate Heat Exchanger FlowPack® are world renowned as robust and reliable units which are used by thousands of customers globally.

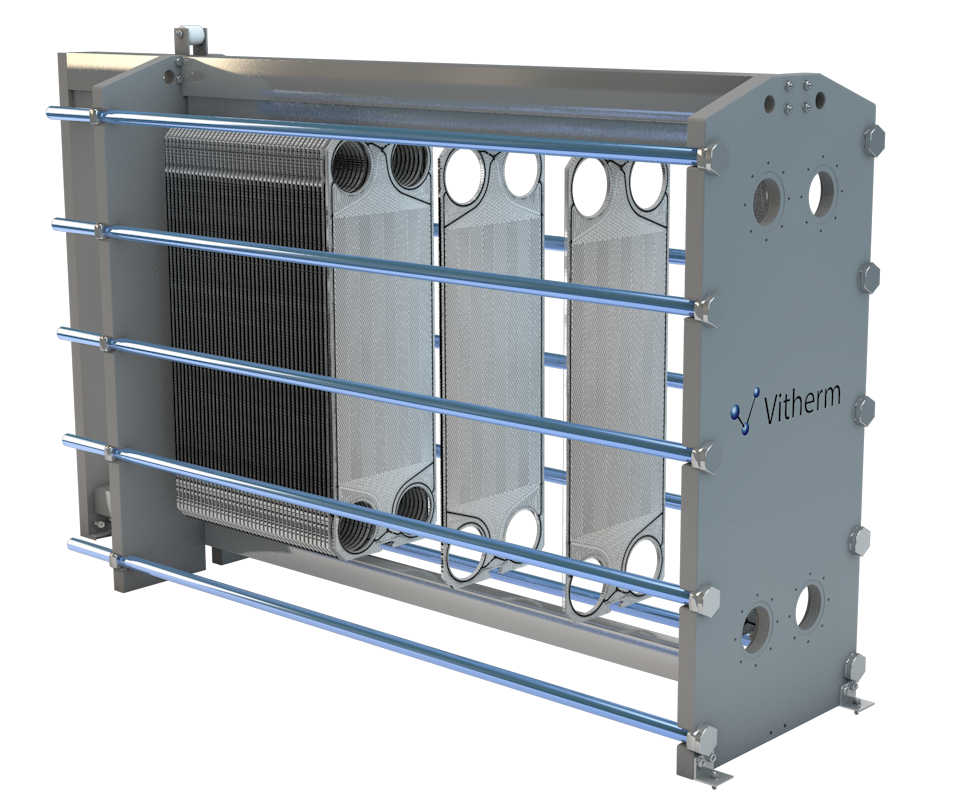

Our Heat Exchangers consist of a pack of corrugated metal plates which allow two fluids to pass between the plates and allow heat transfer to take place. A plate pack is securely positioned between a fixed and movable frame plate and compressed by tightening bolts on either side of the frame. Gaskets ensure that the plates are sealed tightly together, and both the gasket and plate material are chosen based on each and every requirement.
BUILT AROUND YOUR PROCESS
Efficient by design.
Accessible by nature.
The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature of the application. The corrugations on the plates are also determined by the particular application, promote fluid turbulence and reinforce the plates against differential pressure between the fluid mediums.
Vitherm Plate Heat Exchangers can be manufactured in variety of steel types, including:
- SS316L (standard)
- Titanium & Titanium + 0.2 Pd
- Hastelloy® C-2000, C-276, C-22, B2
- SMO 254, 904L
- Nickel
- Uranus B-6
- Incoloy / Inconel
- Monel
- Tantalum
FlowPack® can be configured with various port and connection arrangements.
Temperature−20°C to +200°C
PressureVacuum to 25 barg
FLOWPACK® ADVANTAGES
More performance
in less space.
Compact construction
A small footprint and low weight simplify integration into constrained plants.
Easy maintenance
The accessible plate pack supports regular servicing and low life-cycle costs.
Reliable plate technology
The design, using materials suited to the applications, ensures a long service life.
Gasket flexibility
The type of seals selected based on operating conditions.
Wide configuration range
Multiple passes, plate materials, ports and connection arrangements are available.
INDUSTRIAL FLEXIBILITY
One platform.
Many applications.
TYPICAL APPLICATIONS
Designed for diverse process duties.
- HVAC
- Vegetable oil
- Chemical & petrochemical
- Mining & metal processing
- Oil & gas
- Food & beverage
- Marine
- Power generation
- Pulp & paper
- Pharmaceutical
TECHNICAL BROCHURE
Keep the FlowPack® details at hand.
Download the product brochure for the key applications, features, operating limits and available materials.
